Systems Configuration
If you have one or more systems already configured (graphics correctly imported on the app for them), the Sweet Home app won't enter on the Operator Mode at startup. To access the operator mode, please refer to the following sections: Single System Configured, Multiple Systems Configured
These pages allow you to configure all your systems.
The number of systems available depends on your activated license type.
Sign in for more information about license availability.

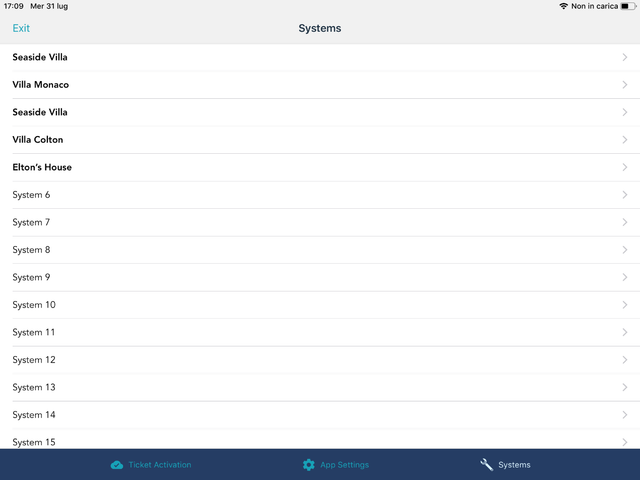

Choose the system to be configured:

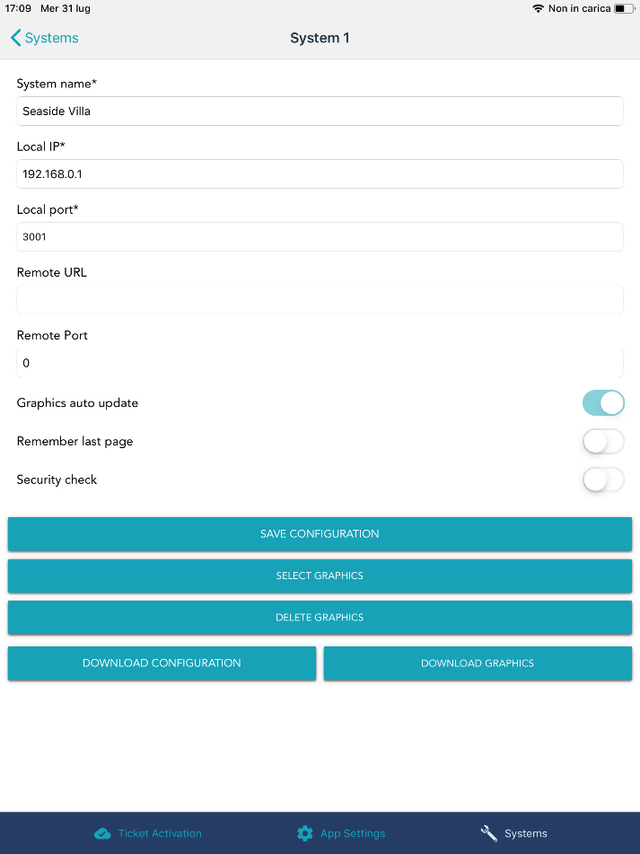

On the System Configuration page, you can set all configuration parameters for each system.
System Name
Enter the name that will appear on the system selection menu button when the Multi-System feature is implemented.
Local IP / Local Port
Enter the address and port of the Vantage Controller within your local network.
(Default port: 3001)
Remote URL / Remote Port
Enter the address and port for connecting when outside the local network that includes the Vantage Controller. This is typically the public address of the remote router.
Graphics Auto Update
If enabled, Sweet Home will automatically check if a new graphics file is available on the Cloud for that system.
The app will check for any updated grahpics each time the system graphics is loaded.

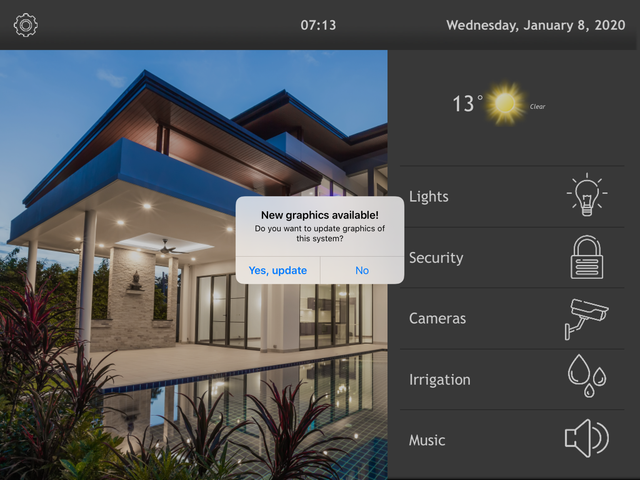

If any new available graphics, the app will ask the user for a confirmation to update the graphics on app replacing the old one.
By pressing Yes, update, the new graphic is automatically downloaded onto your device.
It might happen that the communication with the Vantage controller stops after automatic graphics update. In that case, please shut down the app and open it again.
Remember Last Page
If enabled, the last displayed system page before closing will be reloaded at the next startup.
Security Check / Variable VID / Security Key
The Security Check switch enables a verification function that checks if the connected controller is correct.
On system startup, Sweet Home verifies if there is a variable with the specified Variable VID, whose content matches the Security Key.
Select Graphics
The Select Graphics button allows you to import a graphics ZIP file from the file manager.
You can choose a local file or one from a cloud storage service such as Google Drive, Dropbox, iCloud, etc.
Delete Graphics
The Delete Graphics button removes the local graphics file, leaving the system unconfigured until a new graphics file is loaded.
Download Graphics
The Download Graphics button retrieves the latest graphics file uploaded to the Sweet Home Cloud for the selected system.
Download Configuration
The Download Configuration button retrieves the latest system configuration uploaded to the Sweet Home Cloud.
